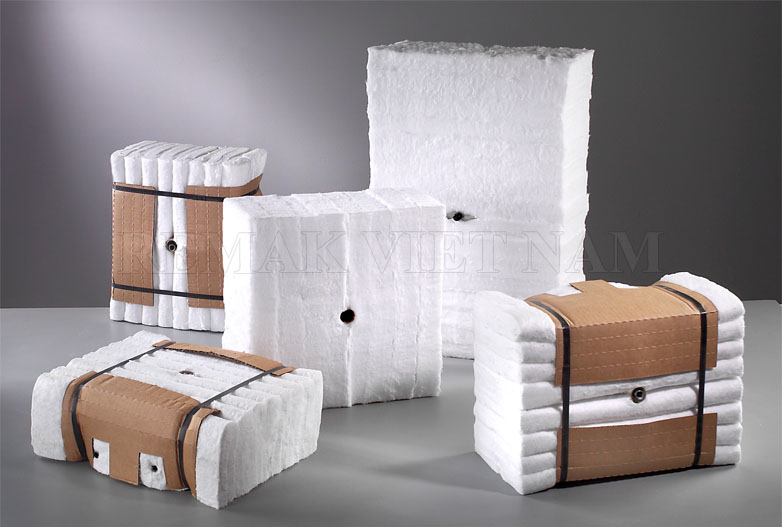

Ceramic Fiber Blanket

Remak® ceramic fiber products are manufactured from alumina-silica materials and offer such characteristics as high temperature stability, low thermal conductivity, low heat storage, excellent thermal shock resistance, light weight, and superior corrosion resistance. Remak® ceramic fiber products exhibit thermal stability at temperatures up to 1430°C (2600°F).

The Remak® Ceramic fiber blanket and mat product family consists of a group of lightweight, thermally efficient ceramic fiber insulating materials that combine the advantages of both low heat storage and complete resistance to thermal shock. Offering a broad range of thermal capabilities and physical characteristics, this product family provides proven and effective solutions to a variety of heat processing applications.

Remak® ceramic fiber products are high strength, needled insulating blankets that are made from spun Remak® ceramic fibers. The extra-long spun fibers, cross-locked through a unique forming process, produce a blanket with exceptional handling strength. This product family is completely inorganic and available in a variety of temperature grades, densities and sizes.

Remak® ceramic fiber mat is a high-temperature, flexible mat product entirely composed of Remak® polycrystalline mullite fibers, making it an extremely lightweight, highly resilient insulator that is virtually free of unfiberized (“shot”) particles.

FEATURES
- Low Thermal Conductivity
- Low Heat Storage
- High Tensile Strength
- Thermal Shock Resistance
- Sound Absorption
- Easy to Install
- Contains no Binder
- Contains no Asbestos
- No Curing on Dry Out Time Required

TYPICAL APPLICATIONS
- Refining and Petrochemical
- Reformer and Pyrolysis Furnaces
- Tube Seals, Gaskets and Expansion Joints
- High Temperature Pipe, Duct and Turbine Insulation
- Crude Oil Heater Linings

STEEL INDUSTRY
- Heat Treating and Annealing Furnaces
- Furnace Door Linings and Seals
- Soaking Pit Convers and Seals
- Furnace Hot Face Repairs
- Reheat Furnaces
- Ladle Covers

POWER GENERATION
- Boiler Insulation
- Boiler Doors
- Reusable Turbine Covers
- Pipe Covering

OTHER APPLICATIONS
- Insulation of Commercial Dryers and Covers
- Veneer Over Existing Refractory
- Stress Relieving Furnaces
- Glass Furnace Crown Insulation
- Fire Protection

SPECIFICATIONS

- Thickness: 25 - 50mm

- Length: 3.6 - 7.2m

- Width: 610 - 1220mm

- Density: 96 ; 128 or 160kg/m3

See more about Rockwool, Glasswool

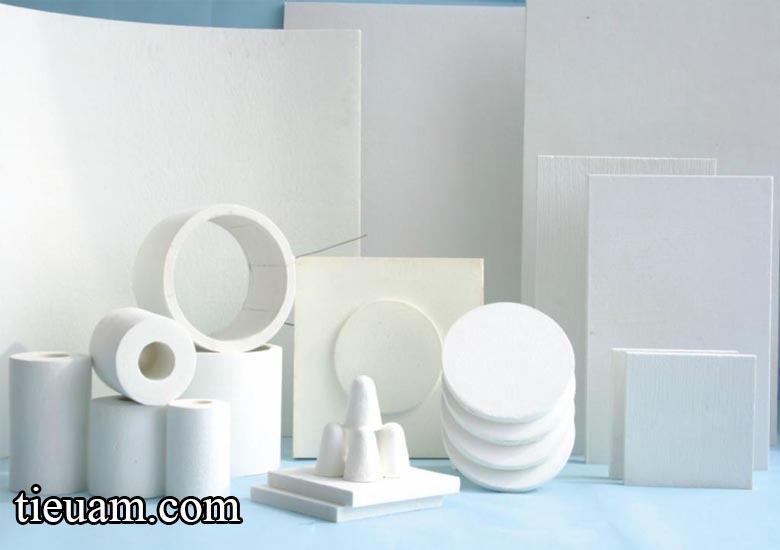

Ceramic Fiber Products in Remak's Warehouse
