This is a new environmentally-friendly heat insulation material, which is soft, light and easy to install. It is made from aluminum foil and polyethylene through special machinery. It has no odor and toxicity; It not only overcomes the discomfort and environmental damage brought by glass fiber and epispastic materials, but can also resist ultra violet radiation that can penetrate through sheet iron, concrete, wood and other common heat insulation materials. This new heat insulation material not only has good insulation, heat-reflection & insulation and anti-radiation functions, but also has good moisture-barrier, heat-preservation and energy-saving functions in housing construction (roof, wall, and floor).

FEATURES

1. Function & Feature: providing excellent isulation function that it can reflect up to 97% radiant /thermal energy and reduce energy cost used in winter heating and summer cooling; fire-retardant material is available if needed.

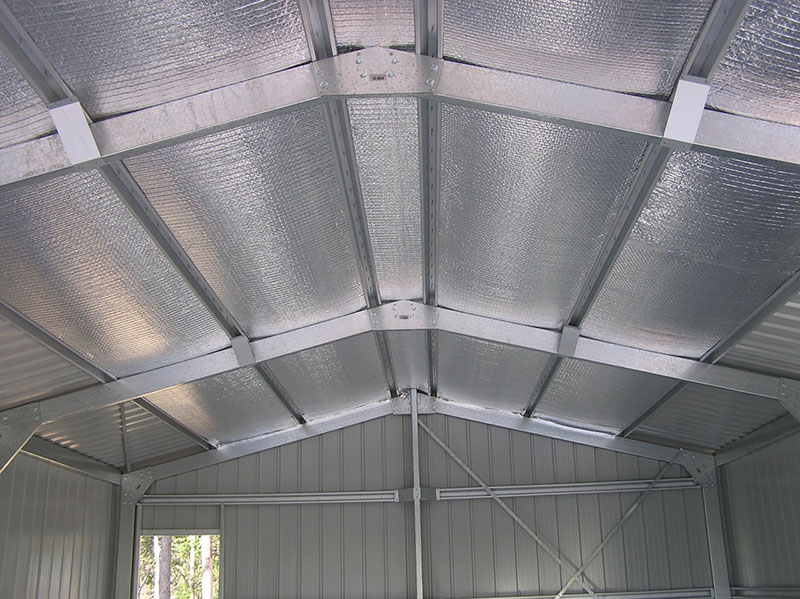

2. Application: Widely used  for attic, roof, ceiling, wall, floor, prefab house, building/construction insulation and    also can be used as container liner,  box liner, pallet cover,  etc.
3. Roll Size: 1.2*40m or customized with max. width at 1.5m
    Bubble Size: diameter: 10-25mm, height: 2.5-10mm or customized
4. Coating Color: blue, green, orange or customized
5. Logo printing acceptable
6. Material & Types (optional):
  - Aluminum Foil +Bubble
  - Aluminum Foil + Bubble + Aluminum Foil
  - Aluminum Foil + Bubble + White PE Film
  - Aluminum Foil + Bubble + Bubble + Aluminum Foil
  - Aluminum Foil + Bubble+Woven Cloth + Aluminum Foil
  - Metallic Foil + Bubble
  - Metallic Foil + Bubble + Metallic Foil
  - Aluminum Foil+XPE+Aluminum
  - Aluminum Foil +EPE+Aluminum
  - Aluminum Foil +XPE+Bubble +Aluminum Foil

More: Glasswool, Rockwool

APPLICATION

(1)Pipe insulation,roof heat insulation,waterproofing membrane

(2)Travel mats,beach mats,camping moisture-proof pad

(3)Car sunshade,car cover,air conditioning covers,motocycle sun-proof cushions

(4)Household appliances,precision instruments,high-grade porcelain and other crafts packaging

TYPICAL PROPERTIES
-Thickness: 3mm(4mm is also OK)
- Tensile Strength: 11lb/inch
- Tear Strength: 3.5lb/inch
- Length: 40m
- Width: 1.55m
- Sqms/Roll: 62m2

Max R Value:

- Heat Flow Down(Roof): 10.5M2*k/w
- Heat Flow Horizonta(Wall): 5.3M2*k/w
- Heat Flow Up(Floor): 3.5M2*k/w

Thermal Performance
- Reflectivity: 97%
- Emissivity: 0.03

Water Vapor Performance
- Water proof: 100%

Fire Performance
- Fire proof: Class A

Application Conditions
- Temperature: -50℃~80℃

Foil bubble insulation can prevent 95-97% of radiant heat

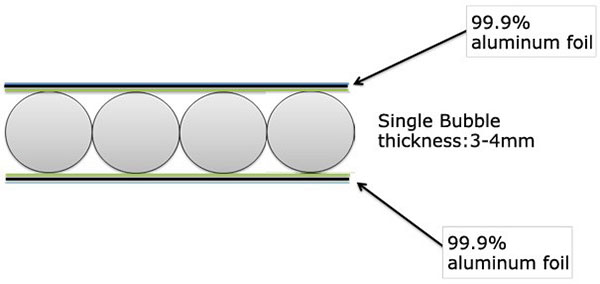

Structure of Aluminium Bubble foil insulation
